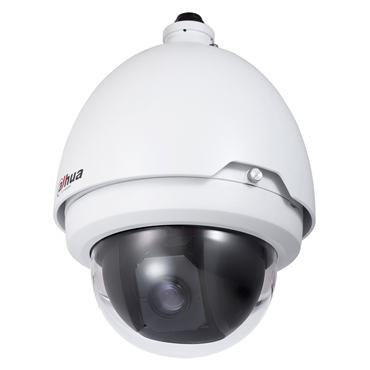

SD6323/30/36/70/63E/65E/66E/23C-H

Camera

  • Advanced camera DSP brings high-resolution and low-light
  • High resolution @700TVL/600TVL/540TVL
  • The min. illumination is 0.001Lux@F1.6(Color), 0.0001Lux@F1.6(B/W) (SD6370-H)
  • Multiple optical zooms@18x/23x/28x/30x/36x
  • Day/Night (ICR), DNR (2D&3D), WDR, Auto iris, Auto focus, AWB, AGC, BLC

Dome Drive

  • Max 300 °/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor
  • Up to 255 preset, 5 auto scan, 8 tour, 5 pattern
  • Auto recognition of general protocols such as DH-SD, Pelco-P/D, and etc
  • Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate
  • Auto restore to previous PTZ and lens status after power failure
  • Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time
  • Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up)
  • Support multi-language OSD
  • Unique 3D positioning function
  • IP66 all-environments protection, 4000V thunder-proof, auto constant temperature & anti-fog; IK10 optional
