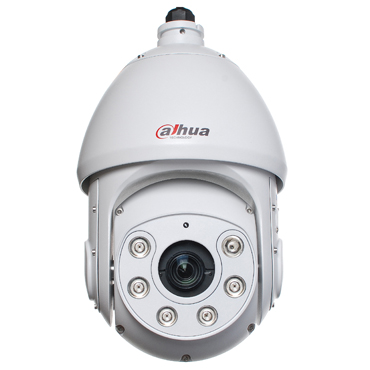

SD6423/30/36/70/63E/65E/66E/23C-H
Camera
- Advanced camera DSP brings high-resolution and low-light
- High resolution @700TVL/600TVL/540TVL
- The max min. illumination is 0.001Lux@F1.6(Color), 0.0001Lux@F1.6(B/W)
- Multiple optical zooms@18x/23x/28x/30x/36x
- Day/Night (ICR), DNR (2D&3D), WDR, Auto iris, Auto focus, AWB, AGC, BLC
Dome Drive
- Max 240°/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor
- Up to 255 preset, 5 auto scan, 8 tour, 5 pattern
- Auto recognition of general protocols such as DH-SD, Pelco-P/D, and etc
- Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate
- Auto restore to previous PTZ and lens status after power failure
- Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time
- Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up)
- OSD and operation prompts of various languages
- Unique 3D positioning function
- IP66 all-environments protection, 4000V thunder-proof, auto constant temperature & anti-fog
- The max. IR distance is over 60m
